f&f energy consumption monitor kit wi-mef-3-40a wi-fi + protection lk-bz-3

Popis

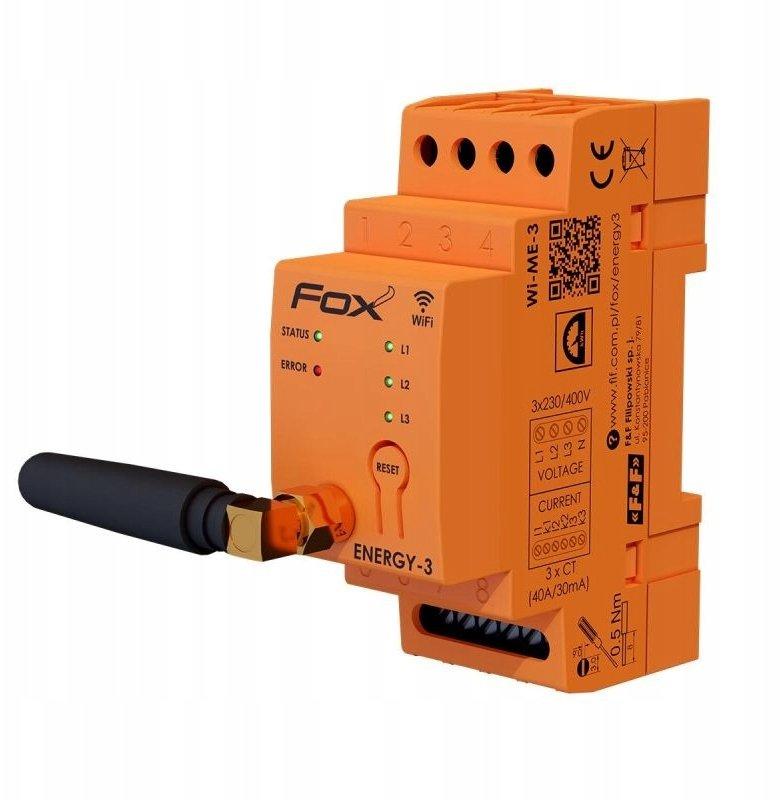

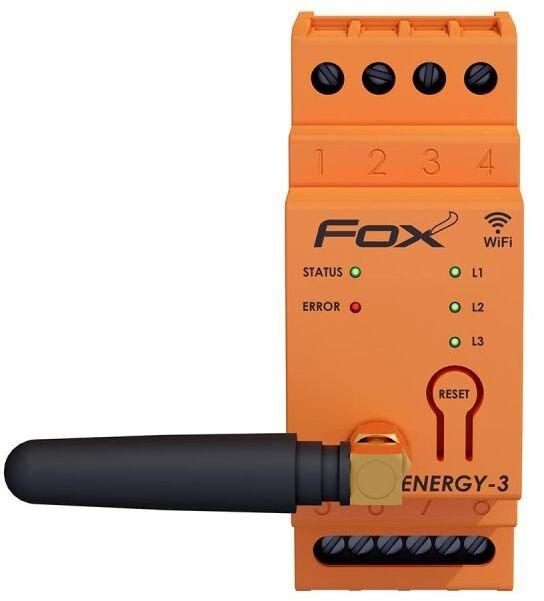

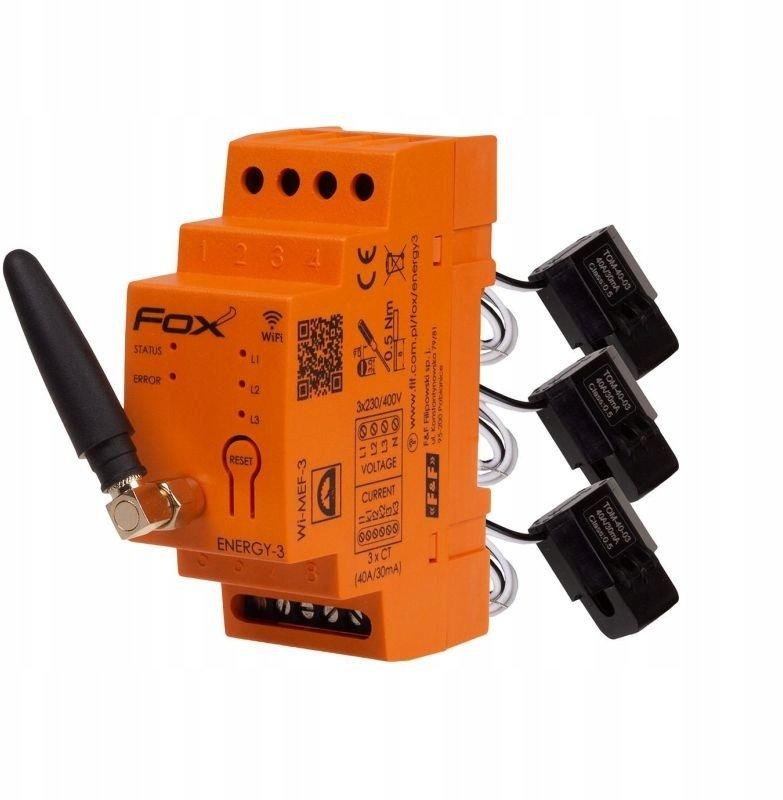

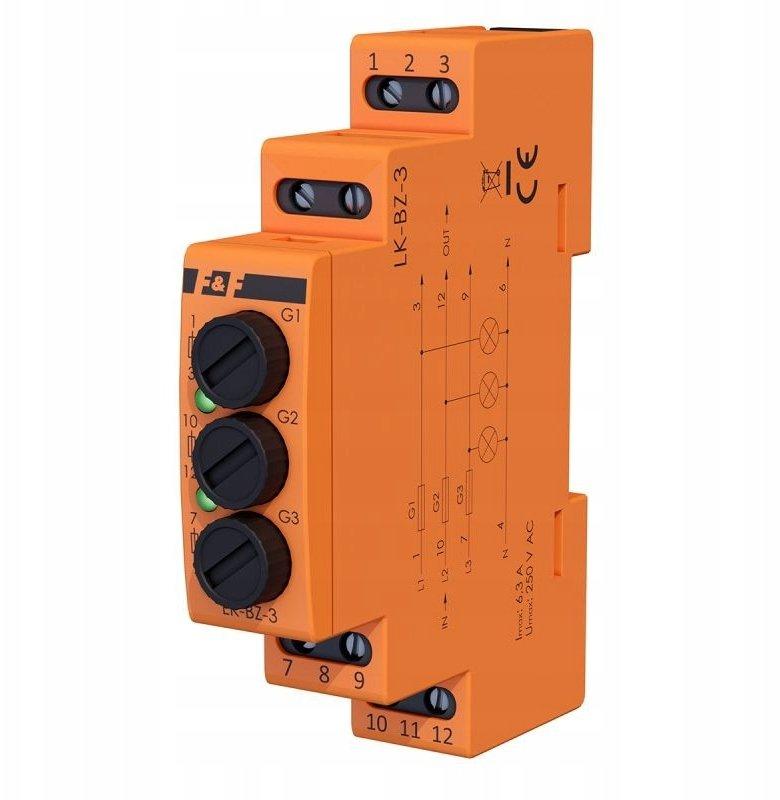

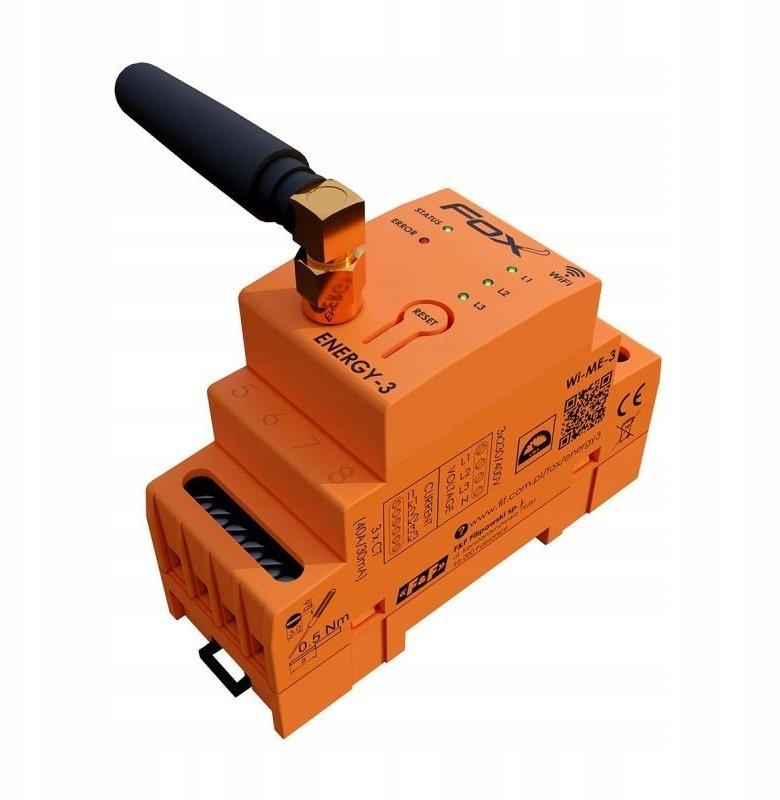

The WI-MEF-3-40A energy consumption monitor kit is a modern solution designed for effective energy management in homes. This innovative set includes a three-phase energy meter and a signal lamp, allowing users to monitor their electricity usage in real-time via Wi-Fi. With high measurement accuracy and the ability to track key electrical parameters, it empowers homeowners to make informed decisions about their energy consumption. The included signal lamp enhances safety by providing visual alerts for excessive current, ensuring reliable operation and peace of mind. Ideal for use in photovoltaic systems and heat pumps, this kit promotes energy efficiency and cost savings.

Vlastnosti

Značka

ff

Model

wi-mef-3-40a

Hmotnosť

2.12 kg

EAN

5902431676869

Communication

wi-fi

Dimensions

90 mm × 35 mm × 85 mm

Accuracy meter

1%

Accuracy transformers

0.5%

Humidity

≤ 90%

Operating temperature

-20 to 50°C

Protection degree

IP20

Three phase

✓

Frequency

50~60 Hz

Measurement constant

1000 imp/kWh

Power consumption

≤ 2 W

Power source

wi-fi

Primary current

40 A

Radio frequency

2.4 GHz

Radio power

≤ 20 dBm

Receiver sensitivity

-98 dBm

Link

2.5 mm²

Wire

4.0 mm²

Secondary current

30 mA

Torque

0.5 Nm

Voltage

3× 230/400 V AC (-25%~+15%)

Wire diameter

≤10 mm
