simet distribution block scb 25 1 pole

Descrição

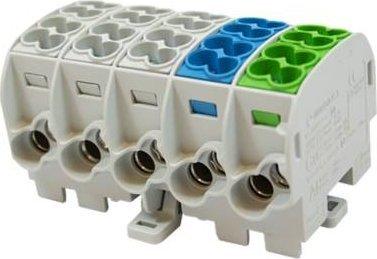

The Simet SCB 25 distribution block is a reliable component designed for both copper and aluminum wires, making it a versatile solution for various electrical installations. Its robust construction ensures durability and resistance to mechanical damage and high temperatures, providing long-lasting performance in challenging conditions. Easy to install on a TS/TH35 rail, it allows for flexible mounting options, enhancing functionality. The sleek black design aids in identification within distribution cabinets, ensuring a modern aesthetic while maintaining safety and secure connections.

Características

Marca

simet

Modelo

scb 25

Peso

0.15 kg

EAN

5907813233876

Dimensions

55.7 mm × 24.8 mm × 49.3 mm

Compatible with

Al/Cu

Compliance standards

IEC 60947-7-1

Mounting type

TS 35 rail

Protection degree

IP20

Rohs compliant

✓

Solid

2 x (2.5 - 25) mm²

Stranded

2 x (1.5 - 16) mm²

Main color

Black

Solid

2 x (2.5 - 16) mm²

Stranded

2 x (1.5 - 10) mm²

Rated current al

100 A (1 x 25 mm²)

Rated current cu

152 A (2 x 16 mm²) / 101 A (1 x 25 mm²)

Rated voltage

1000 V AC / 1000 V DC
