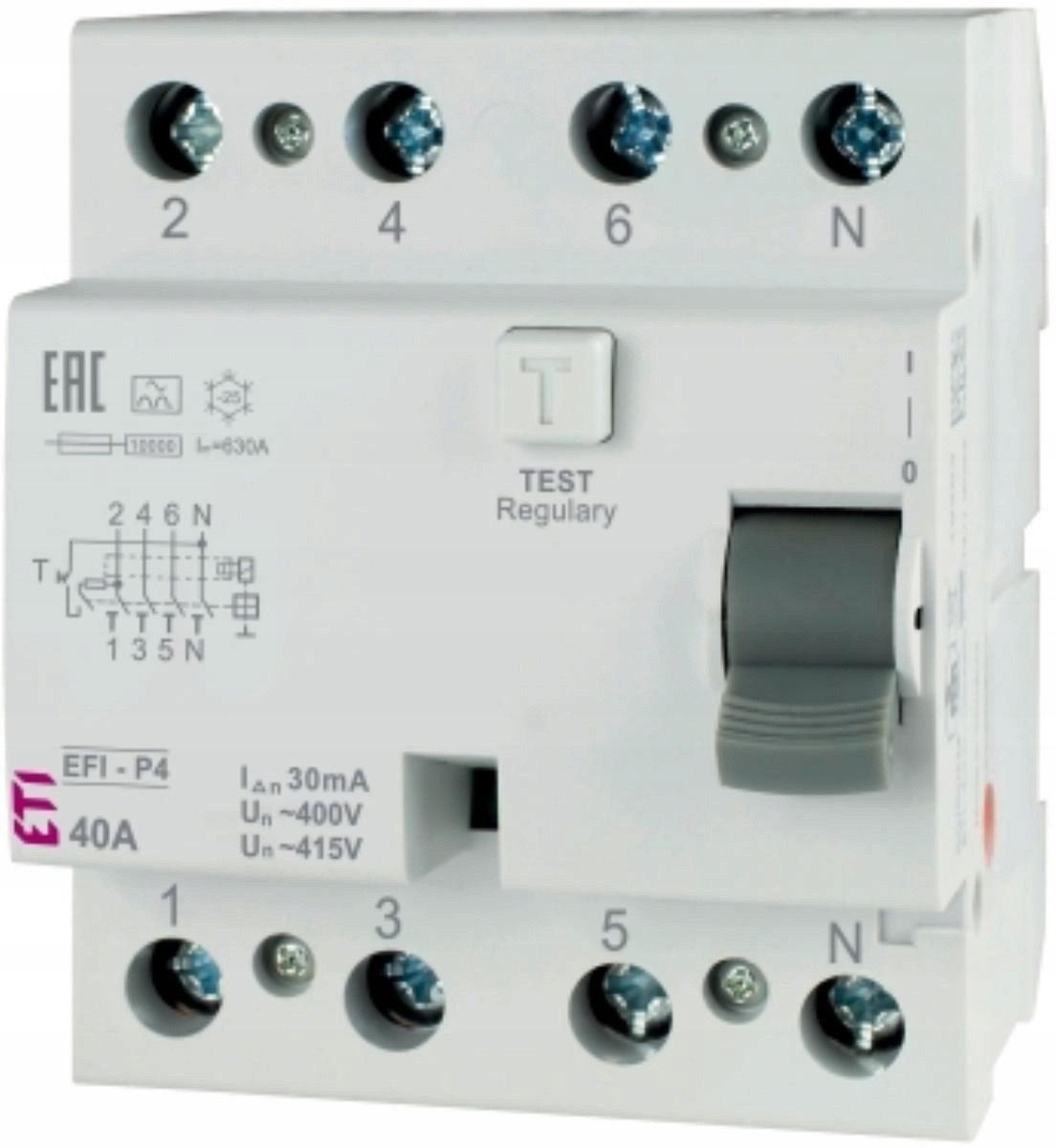

eti polam residual current circuit breaker efi6-p4 40a 30ma

Descrizione

The ETI Polam EFI6-P4 residual current circuit breaker is a reliable device designed to protect your electrical installation from differential currents. With a three-phase design and a rated current of 40 A, it is suitable for various applications in both homes and industries. It features a surge voltage rating of 6 kV for added protection against surges and an IP20 rating, making it ideal for indoor use. The device is easy to install on a DIN rail and has four poles for connecting three phases and a neutral wire, ensuring versatility. Operating in a wide temperature range from -25 to 55 °C, it guarantees stability and safety even in challenging conditions.

Caratteristiche

Marchio

eti

Modello

efi6-p4

Peso

0.1 kg

EAN

3838895910879

Differential current rating

30 mA

Ip rating

IP20

Mounting method

DIN rail

Number of poles

4

Operating temperature range

-25 to 55 °C

Rated current

40 A

Short circuit resistance

6 kA

Surge voltage rating

6 kV
